Shaders

VHS post process Shader (Unity – HLSL) (Late 2022)

fixed4 frag (v2f i) : SV_Target
{
    float2 uv = i.uv;
    fixed4 srcCol = tex2D(_MainTex, i.uv);

    // SCAN LINES SCREEN ------------
    float lineWidth = 450;

    float4 vColor = float4(0.0f, 0.0f, 0.0f, 1.0f);
    vColor += sin(lineWidth * uv.y + frac(_Time.y) * 50) * _scanIntensity;
    float4 vColor2 = float4(0.0f, 0.0f, 0.0f, 1.0f);
    vColor2 += sin(lineWidth * uv.y + (frac(_Time.y) + 0.05 ) * 50) * _scanIntensity;

    vColor = saturate(vColor);
    vColor2 = saturate(vColor2);
    vColor *= _ColA;
    vColor2 *= _ColB;
    vColor += vColor2;

    // // VIGNETTE ----------------------
    float radius = 0.8f;
    float circle = 1 - smoothstep(0.0f, radius, length(uv - 0.5f));
    vColor -= (1 - circle) * _vignette;

    // // GRAIN -------------------------
    vColor += random2d(uv * _Time.y) * _noiseIntensity;

    // // HORIZONTAL DISTORTION ---------
    float p = 0.5; // period
    float a = 1.0; // amp
    float wave = (a/p) * (p - abs(((uv.y + frac(_Time.x * 2.0f)) % (2*p) - p))); // https://stackoverflow.com/questions/1073606/is-there-a-one-line-function-that-generates-a-triangle-wave
    wave = smoothstep(0.98, 0.99, wave);
    float2 uvWarp = float2(random1d(uv.y) * wave * 0.05, 0.0f) * pow(circle, 5.0f);
    float4 vDistortedFrame = tex2D(_MainTex,  uv - uvWarp * 5 * _warpIntensity);

    return vDistortedFrame + vColor;
}

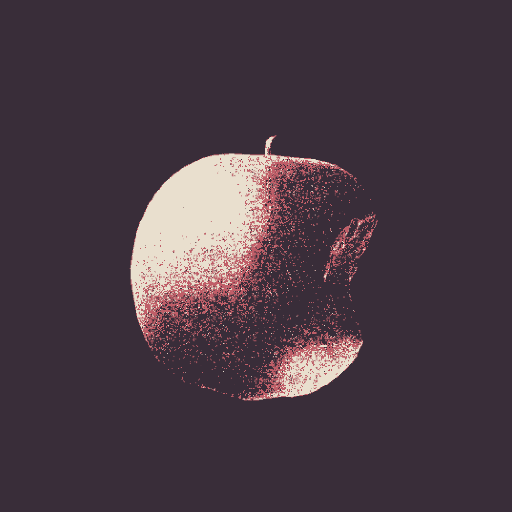

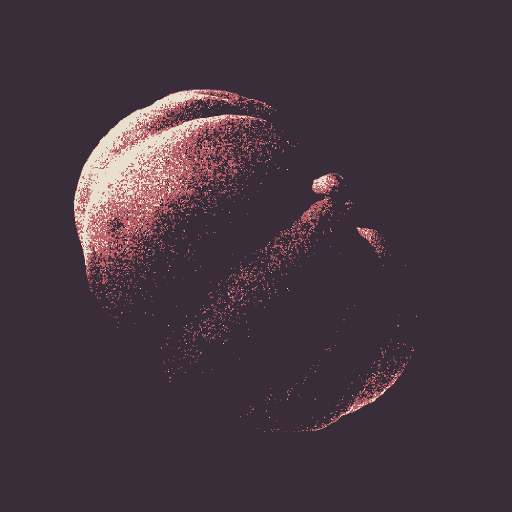

Dithering post process Shader (Unity – HLSL) (Late 2022)

fixed4 frag (v2f i) : SV_Target
{
    float aspectRatio = (_ScreenParams.x / _ScreenParams.y);
    float invAspectRatio = (_ScreenParams.y / _ScreenParams.x);
    float2 Downscale = float2(_Downscale, _Downscale) * float2(aspectRatio, invAspectRatio);

    // Screen Downscaling
    float2 uv = i.uv;
    uv.xy *= Downscale;
    uv.xy = floor(uv.xy);
    uv.xy /= Downscale;

    // Calculate screen grayscale value
    float4 screenTex = _MainTex.Sample(point_clamp_sampler, uv);
    float lum = dot(screenTex.rgb, float3(0.3, 0.59, 0.11));
    lum = smoothstep(_TresholdLow, _TresholdHigh, lum);

    // Sample Blue Noise and compare with screen gray value
    float2 ditherCoords = uv * _MainTex_TexelSize.xy * _DitherTex_TexelSize.zw * float2(aspectRatio, invAspectRatio);
    float ditherLum = _DitherTex.Sample(point_repeat_sampler, ditherCoords * _DitherScale).r;
    float ramp = (lum <= clamp(ditherLum, 0.25f, 1.0f)) ? 0.0f : 1.0f;
    float3 col = _ColorRamp.Sample(point_clamp_sampler, float2(saturate(ramp), 0.5f));

    return float4(col, 1.0f);
}

Metaballs (Unity – HLSL) (Mid 2021)

Shader study of signed distance fields

float sdSphere(float2 p)
{
    float2 spheres[2];
    spheres[0] = _sphere1;
    spheres[1] = _sphere2;

    float value = 0;

    for(int i = 0; i<2; i++)
    {
        value += _radius / sqrt(pow((p.x-spheres[i].x), 2) + pow((p.y-spheres[i].y), 2));
    }

    return value;
}

fixed4 frag (v2f i) : SV_Target
{
    // sphere movement
    _sphere1.y += 0.5f*sin(_Time.y);
    _sphere2.y += 0.5f*sin(_Time.y + 5);

    float sd = sdSphere(i.uv);

    if(_enableTresh)
    {
        float stepSd = step(_treshold, sd);
        float smooth = smoothstep(0, .2, sd);

        float4 lerped = lerp(_ColA, _ColB, smooth);
        fixed4 col = lerped * stepSd;
        return col;

    }
    else
    {
        fixed4 col = float4(sd, sd, sd, 1.0f);
        return col;
    }

}


Shader Recreation: Apex Legends Gibraltar’s passive.
(Mid 2022)

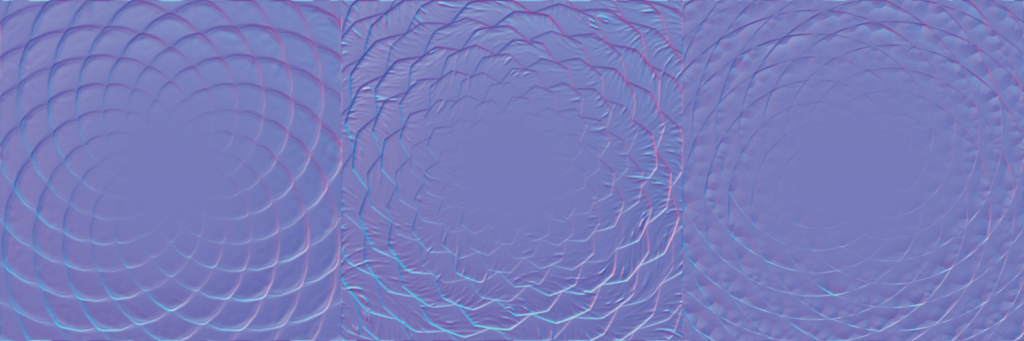

Recreation of Gibraltar’s passive skill in Unreal Engine 5. Textures made in Substance Designer, shader made via material editor nodes inside UE5.

This image has an empty alt attribute; its file name is normals-1024x341.png

Quantum League: See Through post process material (Late 2020)

Post process material developed inside Unreal Engine 4 for the game Quantum League of Nimble Giant Entertainment.
